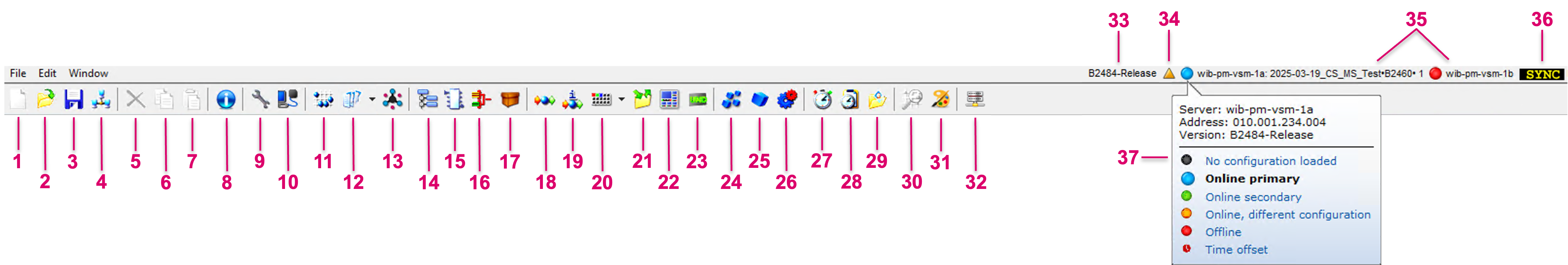

1 - Open/Start New Configuration
2 - Open Configuration File
3 - Save Configuration
4 - Transfer Configuration to all vsmStudio Servers within the Cluster
5 - Remove selected Element
6 - Copy selected Element
7 - Paste selected Element
8 - About running Software Version
9 - System Properties
10 - Communication Port Management
11 - Master Matrix
12 - Views
13 - HOME
14 - Explorer Directory
15 - Signal Paths
16 - Pseudo Devices
17 - Boxing
18 - GPIO
19 - GPIO Status
20 - Panel Editor
21 - Storage Groups
22 - Monitor Management
23 - UMD
24 - Gadgets
25 - Modules
26 - Meta Gadgets
27 - Timers
28 - Timeline
29 - Pictures
30 - Matrix View Magnifier
31 - Use System Default Colors
32 - View Network flows
33 - Current running Software Version
34 - Active "dummy" feedback (flashing)
35 - Server Status
36 - System Sync in process (flashing on startup)
37 - Tooltips (on hover over 34 or 35)
| Server Status Indicator Legend: |
| State | Meaning |
|---|
| No configuration loaded. A server, which is member of a cluster, is active, but does not run any configuration. |
| Online primary server. The server runs as primary cluster server (or standalone). |
| Online secondary server. The server is active member of a cluster, but does not have the primary role. |
| Online, different configuration. A server, which is member of a cluster, is active, but runs a different configuration than the primary server. |
| Offline. A server, which is a member of a cluster, is offline. |
| Time offset. Server time is not in sync. |
| Attention. Virtual Status Feedback is active. Dummy X-Switch or Dummy Feedback on Network layer. |
