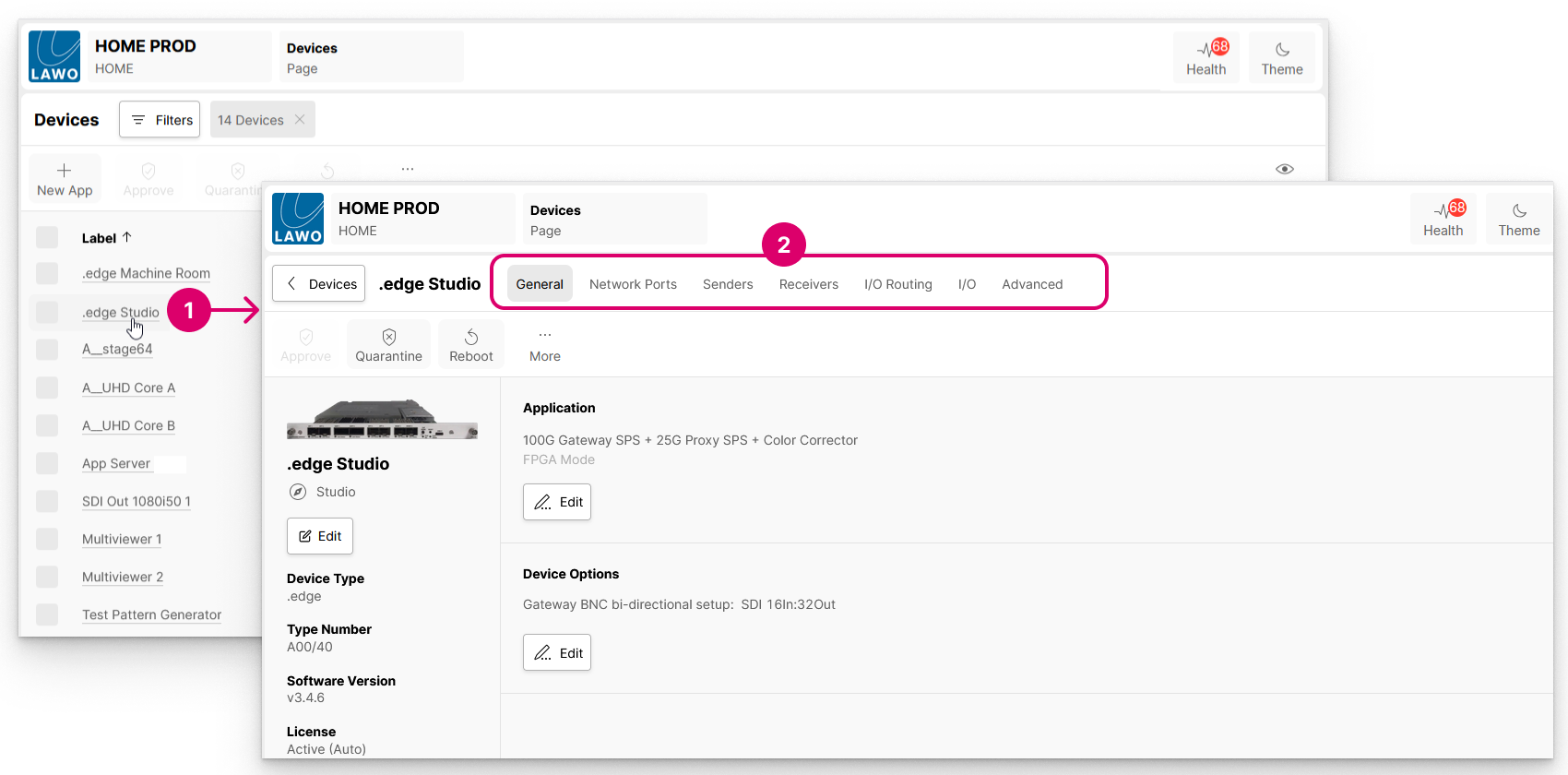

The settings for an individual device can be accessed, from the 'Devices' list, by clicking on the device label (1) and choosing a menu tab (2).

The available pages, and their settings, vary depending on the device type. For HOME-native devices, you can check and edit a variety of device-specific parameters such as the label and location, initial configuration, IP settings, senders and receivers, and so on.

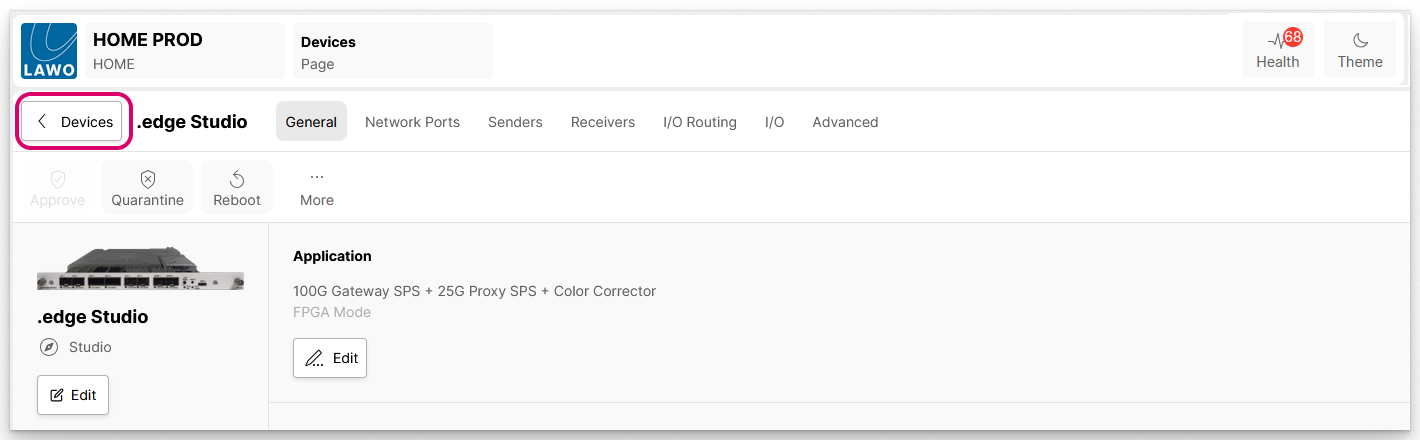

To return to the main 'Devices' list, click on the < Devices button (to the left of the device label).

Repeat the steps above to access another device.

The same procedure can be used to access any device, app or service (in HOME's 'Devices' list). For example, to view and edit the parameters of an individual app.

Settings Overview

The General settings is the first landing page that appears whenever you click through to an individual device. If there are other pages available, then these appear as additional menu tabs (2).

In the example (shown below), there are seven pages. The first five (General, Network Ports, Senders, Receivers and I/O Routing) are available for most streaming devices. The last two (SDI I/O and Advanced) are specific to .edge.

If a device is Offline or has No HOME Pass, then a page with minimal content opens.

In this instance, check that the device is powered and connected to the network, and that it has a valid HOME Pass (license). For more information about the licensing, please see HOME - HOME Passes.

General settings

The General settings page is divided into three main sections with device/app management operations (at the top), general information (on the left) and other settings (on the right).

The informational fields (on the left) include the current label and location, plus the Software Version and Serial Number (important for licensing). The Edit button can be used to edit the device label and location. For a physical device, the Identify Hardware function can be used to identify the device by flashing an LED or showing a message on its front panel.

The settings (on the right) vary depending on the device type:

  • For .edge, you can edit the Application (operating mode) and Device Options (number of SDI In/Out).
  • For an A__stage, you can edit the Wordclock Profile (1fs or 2fs) and Device Options (sample rate).
  • For HOME Apps, you can check the Lifecycle and Licensing information; change the License Type or edit the app's initial configuration (under App Options).

Network Ports

The Network Ports page lists all of the device's network ports or, for HOME Apps, the network ports of the app server. From here you can check the status of a port and edit its network settings.

Senders and Receivers

The Senders and Receivers pages appear for all devices that support signal streaming. They list all of the device's IP senders and receivers. For some devices, these are pre-defined (according to the configuration of the device). For others, they must be created (in HOME) using New Sender and New Receiver.

Depending on the end device, the sender(s) and receiver(s) can handle up to four essence types: Video, Audio, Metadata and/or GPIO.

If you select a sender or receiver, then it is possible to adjust the I/O Routing (for the audio streams), edit the streaming parameters or access the SDP data. In addition, the "Show Sidebar" button (on the right) reveals the available properties for the selected sender or receiver.

I/O Routing

The I/O Routing page appears for devices that handle audio streams. It is used to map the audio channels of the IP senders and receivers to the physical inputs and outputs of the device.

In each case, you can connect (or disconnect) the physical inputs to the IP sender channels, and the IP receiver channels to the physical outputs.

Advanced / Other

If other tabs are available, then these provide access to additional parameters that are specific to the device. Products that support an Advanced page (for advanced parameters) include .edge and HOME Apps.

For more information, please see Advanced Parameters or refer to the documentation for your end device.

Further Information

The rest of this chapter provides a more detailed description of the device configuration pages:
