The Central Control Section includes an individual SEL button (for each module) and SEL ALL button (for all modules). During normal operation, these buttons perform no function. They are used whenever you need to make a selection - for example, to copy or reset a parameter, link modules between channels, select modules for snapshot crossfades, etc.
| To clear down any existing selections, toggle the SEL ALL button (this selects and then deselects all modules). This ensures that there no "hidden" selections. |
Audio Modules

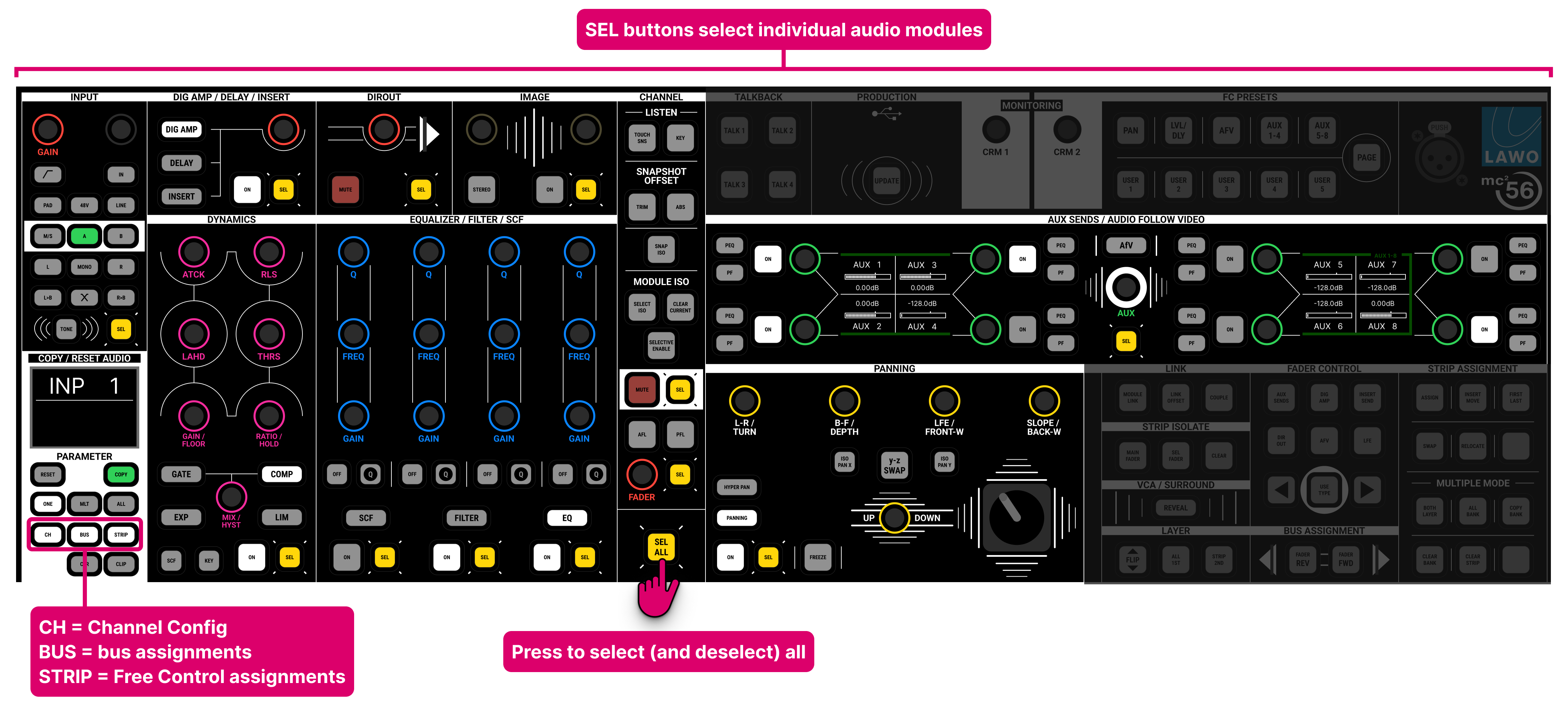

To select a complete audio module, use the SEL buttons in the Central Control Section as follows.
- INPUT – channel input parameters. Note that the Source and InMix gain can be selected independently. See Adjusting InMix Gain.
- DIG AMP, DELAY, INSERT, DIROUT – digital amplifier gain, delay, insert and direct out. Each section is selected independently.
- IMAGE – stereo image and position.
- DYNAMICS – gate, expander, compressor and limiter. Each section is selected independently.
- SCF – sidechain filter parameters.
- FILTER – 2-band filter parameters.
- EQ – 4-band EQ parameters.
- MUTE SEL – the status of the mute button.
- Fader SEL – the main channel level.
- AUX SENDS / AUDIO FOLLOW VIDEO – aux sends and AFV. Each page of auxes and AFV is selected independently.
- PANNING – stereo/surround pan parameters.
Other Channel Parameters
Other channel parameters are selected using the buttons on the COPY/RESET AUDIO panel:
- CH - selects the channel signal processing order as defined in the Channel Config display.
- BUS - selects the channel's bus assignments to groups and sums. Note that aux assignments are not included as they are selected via the AUX SENDS panel.
- STRIP - selects the fader strip's Free Control assignments.
Channel Color Coding
You can select the channel's color code using the on-screen Select button on the Channel Config display:
Select All & Clearing Selections
Every time you re-enter a selection mode (e.g. copy or reset), any previous selections are retained.
Use the SEL ALL button, below the CHANNEL area, to select (or deselect) all available channel parameters (including CH, BUS and STRIP).
