When configuring Power Core, it is important that the correct hardware revision is specified (to ensure that all permitted options are available in ON-AIR Designer).
The revision is displayed on the front of the 'System Core' configuration as a part number:
- 710/10 - Power Core revision 1
- 710/11 - Power Core revision 2
- 710/13 - Power Core revision 3
Please note: By default, when you create a new project (using File → New) and select the Power Core (diamond / crystal) option, the frame revision is set to 710/11. This means that if the Power Core hardware is revision 3, you will need to change the revision number.
To change the revision:

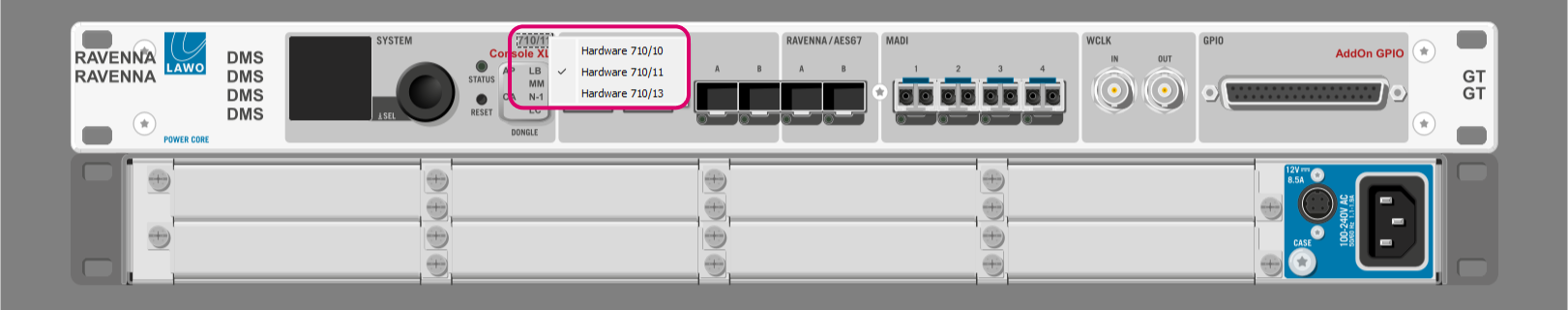

1. From the 'System Core' configuration, right-click on the current part number (e.g. 710/11) - a drop-down menu appears.
2. Choose the correct revision number for your system (e.g. 710/13).
The project converts which takes a few seconds.
3. Once the conversion is complete, the 'System Core' updates.

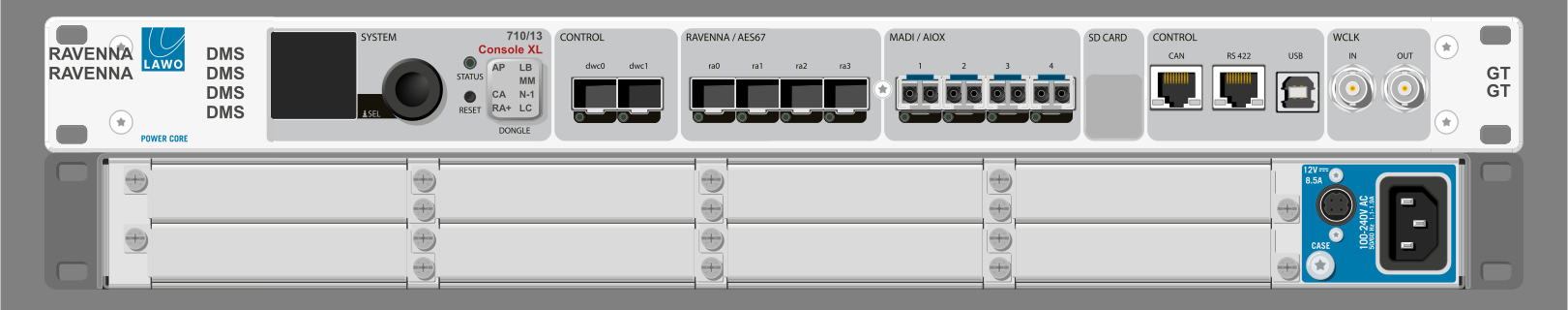

In the example below, the front panel now show the correct part number and connectors for a revision 3 frame.
