Please note, that Home Snapshots must not be understood and used as partial snapshots, used to recall selected system parameters to parts of a system. Home Snapshots always contain a complete configuration of the entire system, including stream routing and system parameter settings for all devices, which have been online while saving the snapshot. If a Home Snapshot is recalled, all devices being online and part the snapshot will receive a status update.

Loading a snapshot can negatively impact your entire system, especially if you only want to restore some devices of the system.

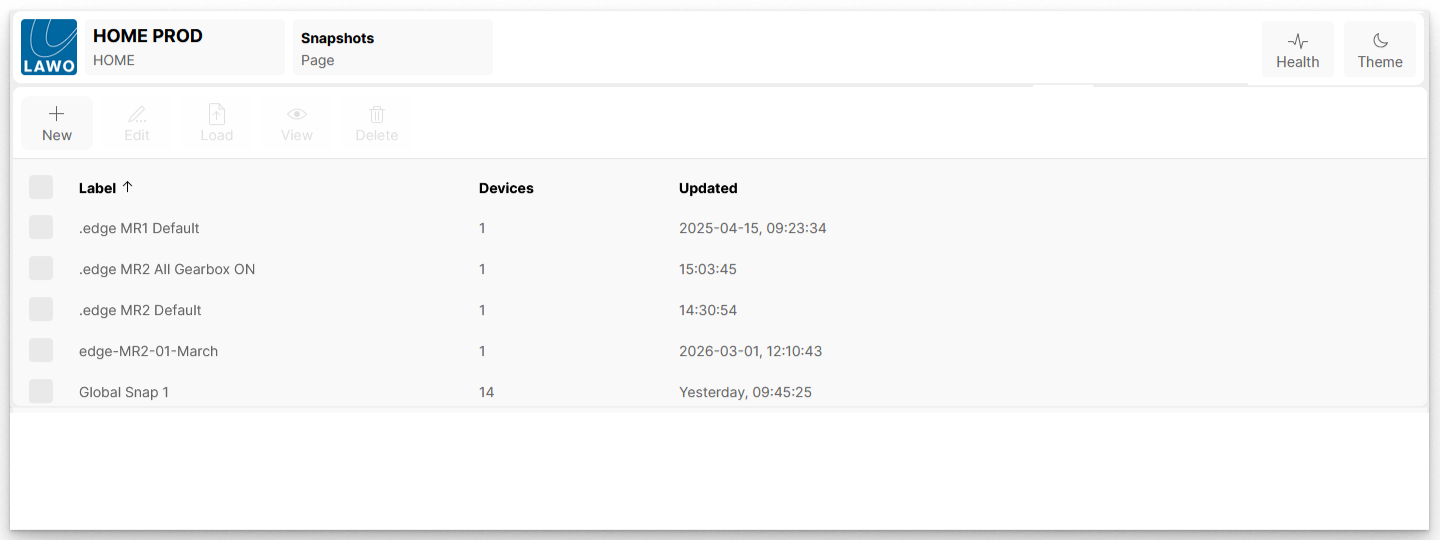

The "Snapshots" page lists all available snapshots. These can be used to make a backup of the complete configuration. For example, to provide a level of undo while you are first setting up the devices and their streaming.

For each existing snapshot, you will see its label and timestamp (showing when the snapshot was last updated).

Snapshots should be loaded with caution as they store and recall the complete configuration of all devices and their stream routing.

Possible Operations

The following operations are possible.

1.    Click on a column header to sort the list alphabetically.

Each click toggles the sort mode between ascending (A -> Z) and descending (Z -> A). An up or down arrow appears beside the header to indicate the current sort mode.

2.    Click on the New button to create a new snapshot.

The "New Snapshot" window opens. Enter a label and click on Create to save a new snapshot.

3.    Select a snapshot and click on Edit to edit the snapshot label.

The "Edit Snapshot" window opens. Enter a new label and click on Done to confirm.

4.    Select a snapshot and click on Load to load a snapshot.

The "Load Snapshot" window opens. Read the information box carefully.

  • To continue, enter the confirmation text and click on Load.
  • To exit without loading, click on Cancel.

5.    Select a snapshot (or snapshots) and click on Delete to delete the selected snapshot(s).

A confirmation window appears. Click on Delete to confirm or Cancel to cancel the operation.
